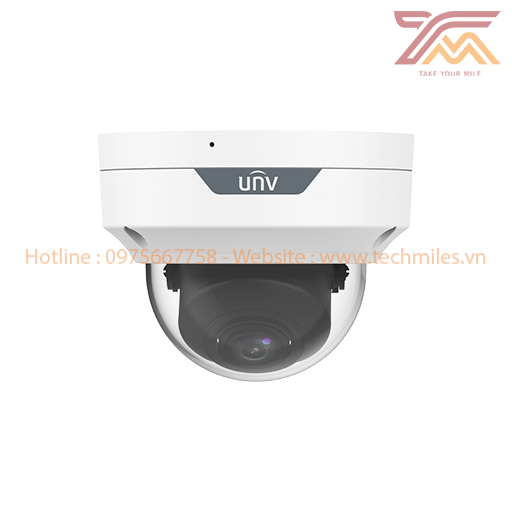

Camera IP UNV cố định ColorHunter Wise-ISP 4MP IPC3514LE-ADF28(40)K-WP

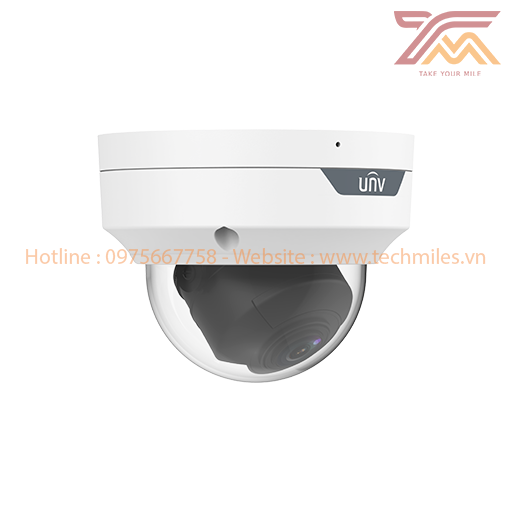

Camera IP UNV cố định ColorHunter Wise-ISP 4MP IPC3514LE-ADF28(40)K-WP - Hình ảnh 2

Camera IP UNV cố định ColorHunter Wise-ISP 4MP IPC3514LE-ADF28(40)K-WP - Hình ảnh 3

Camera IP UNV cố định ColorHunter Wise-ISP 4MP IPC3514LE-ADF28(40)K-WP

Name: Camera IP UNV cố định ColorHunter Wise-ISP 4MP IPC3514LE-ADF28(40)K-WP
SKU: IPC3514LE-ADF28(40)K-WP
Availability: BackOrder

Camera Giám Sát> Camera IP Uniview> Owlview Series SKU: IPC3514LE-ADF28(40)K-WP

IPC3514LE-ADF28K-WP | IPC3514LE-ADF40K-WP
Camera mạng cố định ColorHunter Wise-ISP 4MP
• Hình ảnh chất lượng cao với cảm biến CMOS 4MP, 1/1.8″ và ống kính khẩu độ lớn F1.0
• 4MP (2688 × 1520)@25/20 fps; 4MP (2560 × 1440)@25/20 fps; 3MP (2304 × 1296)@30/25 fps; 2MP (1920 × 1080)@30/25 fps
• Ultra 265, H.265, H.264, MJPEG
• Hỗ trợ ColorHunter với công nghệ Wise-ISP, tối ưu hóa sâu sắc màu sắc, chi tiết và hiệu ứng nhòe trong các cảnh cực kỳ thiếu sáng
• Công nghệ True WDR 120 dB cho phép hình ảnh rõ nét hình ảnh trong cảnh có ánh sáng mạnh
• Hỗ trợ chế độ hành lang 9:16
• Micrô tích hợp
• Hỗ trợ thẻ nhớ Micro SD lên đến 512 GB
• Bảo vệ IP67
• Bảo vệ IK10
• Hỗ trợ nguồn điện PoE
• 3 trục

Liên hệ

IPC3514LE-ADF28(40)K-WP

Xóa

Thông số
Đánh giá (0)

IPC3514LE-ADF28(40)K-WP	IPC3514LE-ADF28K-WP, IPC3514LE-ADF40K-WP

Thông số kỹ thuật

	IPC3514LE-ADF28K-WP	IPC3514LE-ADF40K-WP
Camera
Max Resolution	4 MP
Sensor	1/1.8″ CMOS
Min. Illumination	Colour: 0.0003 lux (F1.0, AGC ON)
Shutter	Auto/Manual, 1 ~ 1/100000s
Adjustment Angle	Pan: 8° ~ 360°, Tilt: 0° ~ 68°, Rotate: 10° ~ 360°
S/N	>52 dB
WDR	120 dB
Lens
Focal Length	2.8 mm	4.0 mm
Iris Type	Fixed
Iris	F1.0
Field of View (H)	124.3°	96.1°
Field of View (V)	61.4°	52.2°
Field of View (D)	135°	113.5°
DORI
DORI Distance (Lens)	2.8mm	4.0mm
DORI Distance (Detect)	43.4m(142.5.7ft)	62.1(203.6ft)
DORI Distance (Observe)	17.4(57.0ft)	24.8(81.5ft)
DORI Distance (Recognize)	8.7(28.5ft)	12.4(40.7ft)
DORI Distance (Identify)	4.3(14.3ft)	6.2(20.4ft)
Illuminator
Supplemental Light	N/A
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4MP (26881520), Max 25fps;4MP (25601440), Max 25fps; 3MP (23041296), Max 30fps; 1080P (19201080), Max 30fps; Sub Stream: 720P (1280720), Max 30fps; D1 (720576), Max 30fps; 640*360,Max 30fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart Illumination	N/A
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog
Events
Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Intelligent
Smart Intrusion Prevention (Lite)	Intrusion, crossline detection (both detection are based on human body and vehicle detection)
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz
Storage
Edge Storage	Micro SD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Network
Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users, 2 user levels: administrator and common user
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	UNV-Link, UNV-Link Pro, EZStation
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A
Certification
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1) UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529) IK10 (IEC 62262)
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption	Max 2.0W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø128 x 100mm (Ø5.0” x 3.9”) (Ø x H)
Weight	0.63kg (1.39lb)
Material	Metal + Plastic
Working Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Web Client Language	13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian
